Preview ​

CodeBuddy IDE supports automatic rendering of code changes via a browser kernel, allowing you to instantly view the running effect of the current project code without switching tools or manually starting services, achieving real-time debugging and preview.

Features ​

  • Instant Rendering: Automatically render running effects after code modification, no manual refresh needed.
  • Zero Configuration: No need to manually start services or switch tools.
  • Visual Optimization: Support selecting components to perform UI optimization via natural language.

Real-time Preview ​

There are two ways to open the local project preview:

Method 1: Automatic Call ​

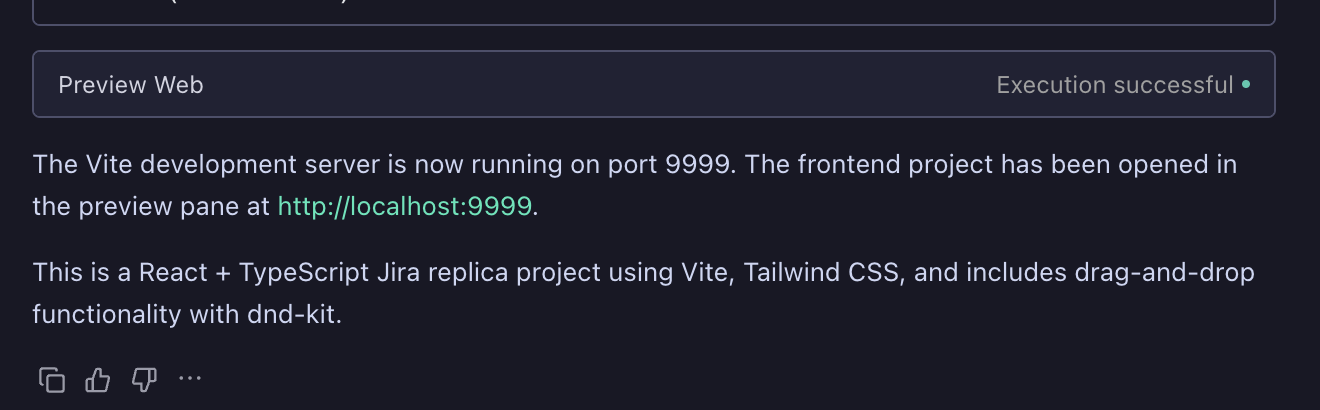

After CraftAgent completes code generation or modification, the Agent automatically calls the tool to open Preview.

Method 2: Manual Trigger ​

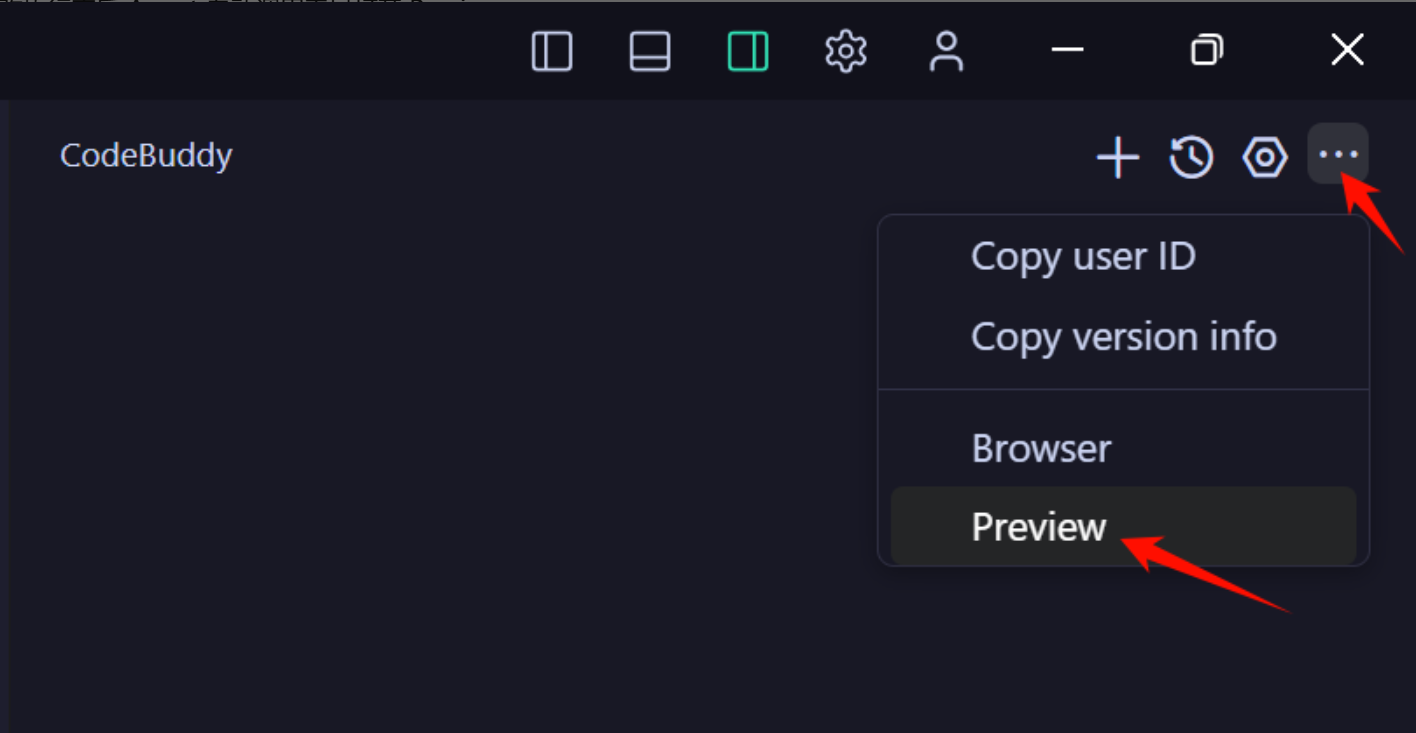

  • Manually click the Preview tool in the top right corner of the Chat panel to preview.

Auto Preview

  • Or manually input a Prompt to trigger the Agent to open Preview and view the running effect in real-time.

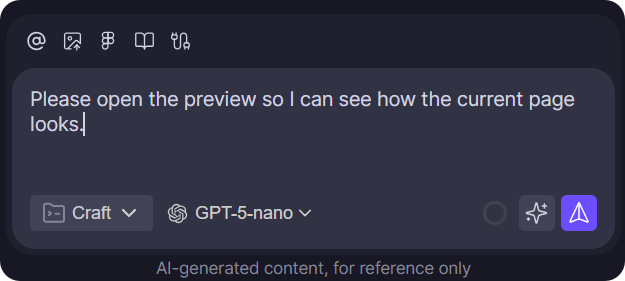

Example Prompt:

text
Please open preview so I can see the current page effect

Preview Effect ​

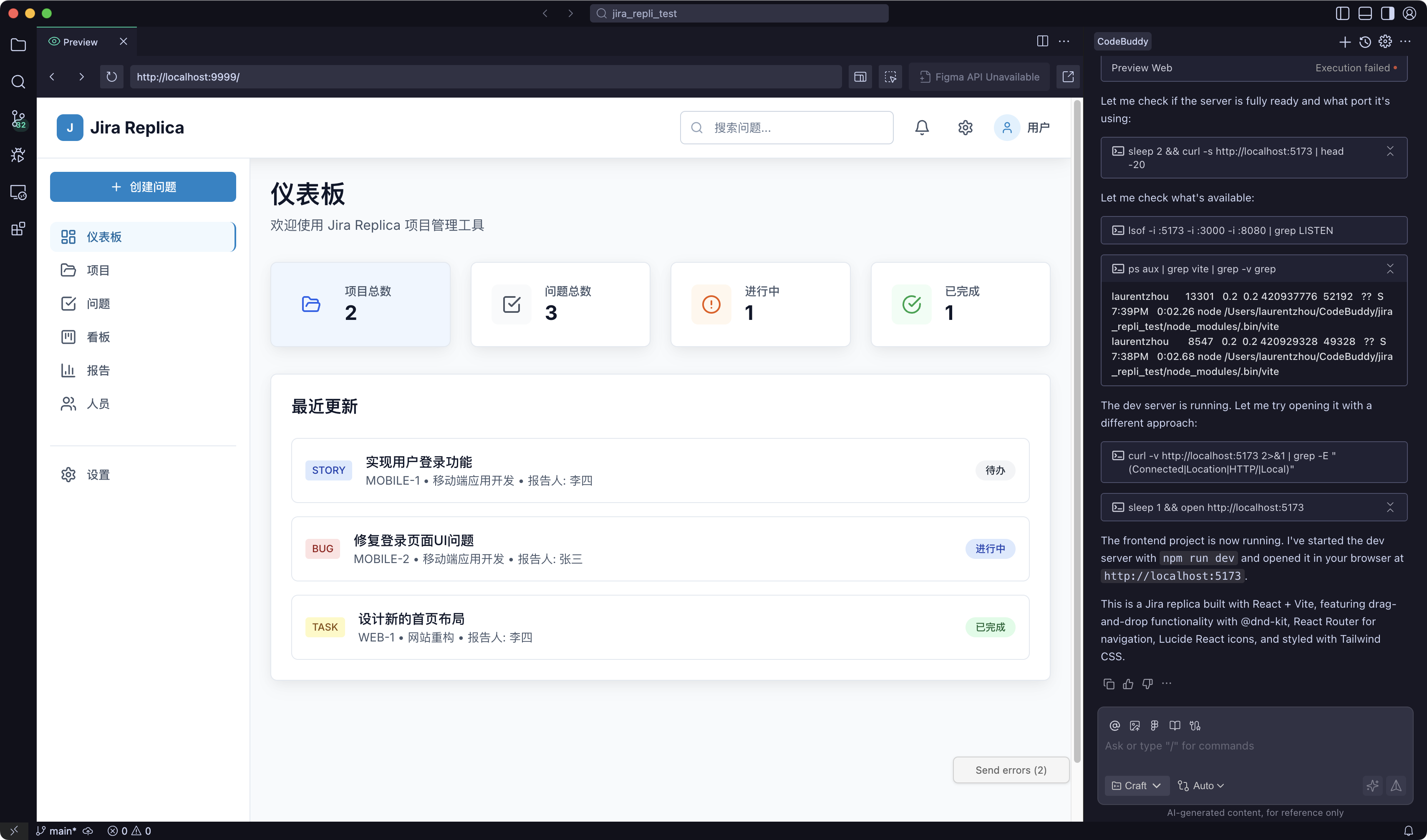

The preview effect is shown below:

AI Visual Optimization ​

In the preview page, you can select specific components and optimize the UI via Natural Language or DOM Editor.

Method 1: Natural Language Optimization ​

  1. Click the AI Visual Optimization button.

  2. Select the component to utilize, and enter modification suggestions in the input box below.

    text
    Please change this button to a blue background

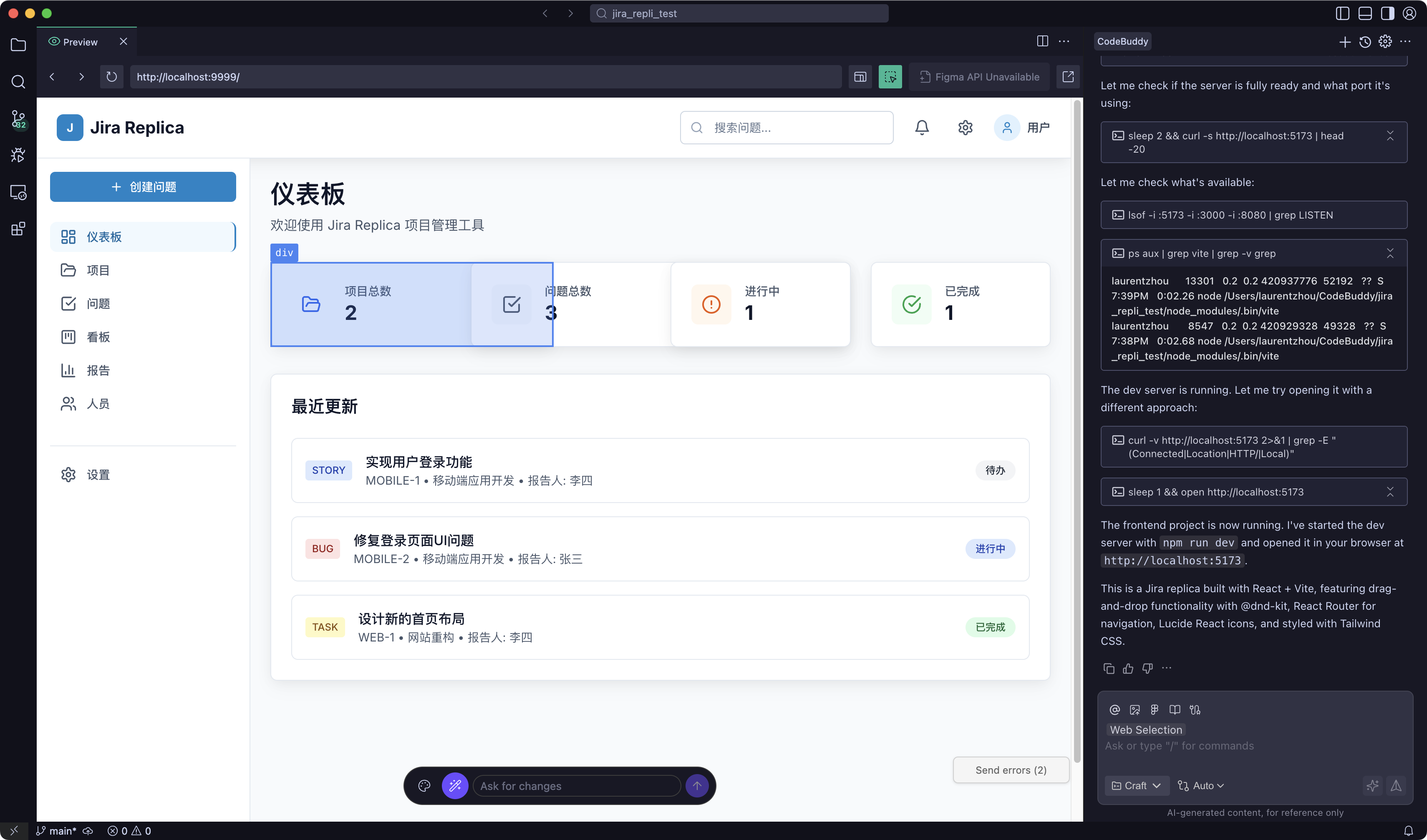

    AI Visual Optimization Input

  3. View functionality effect. If not satisfied, you can continue to optimize the style.

    Optimization Effect

Method 2: DOM Editor ​

You can also use the DOM Editor to directly modify component styles.

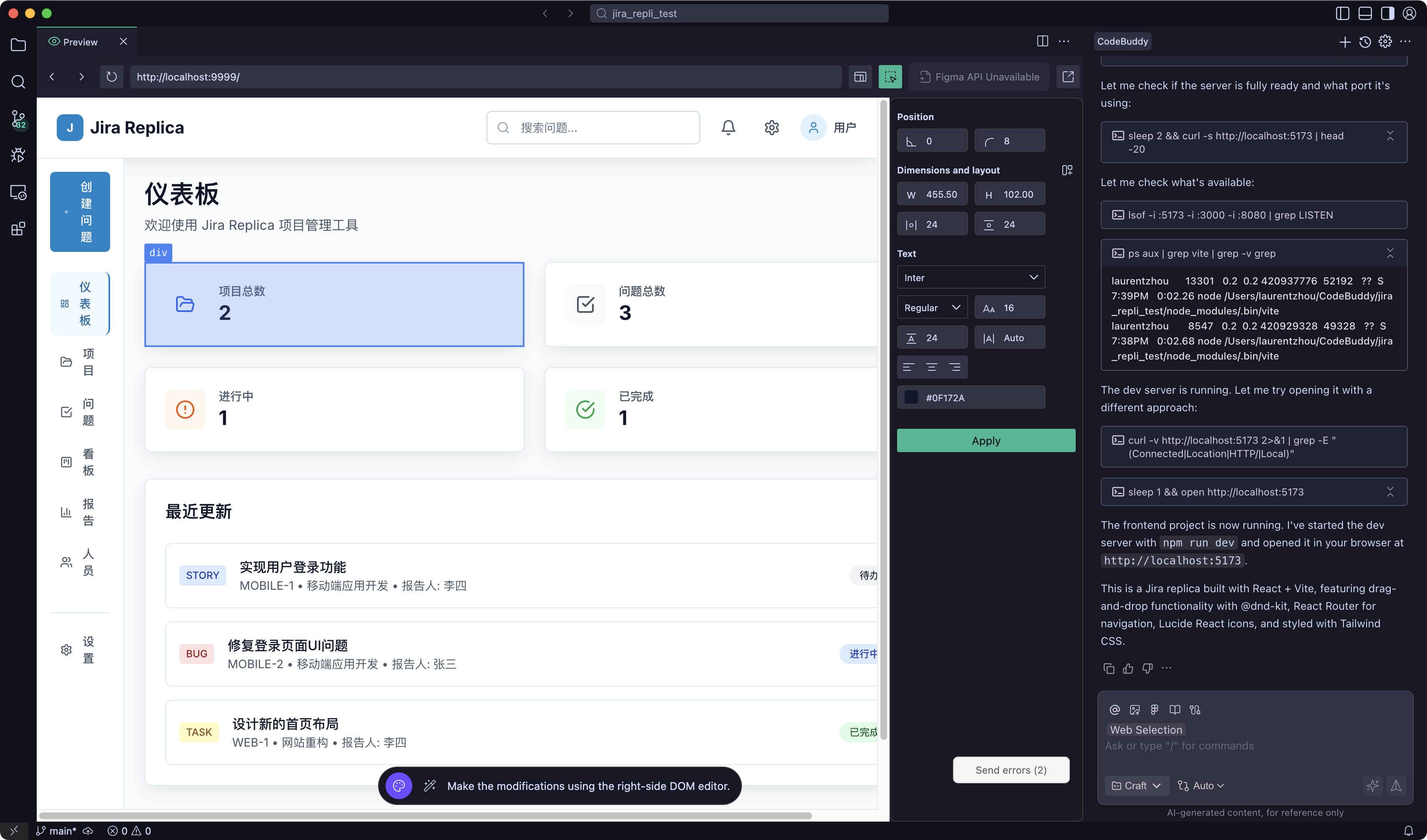

DOM Editor

Fix Errors ​

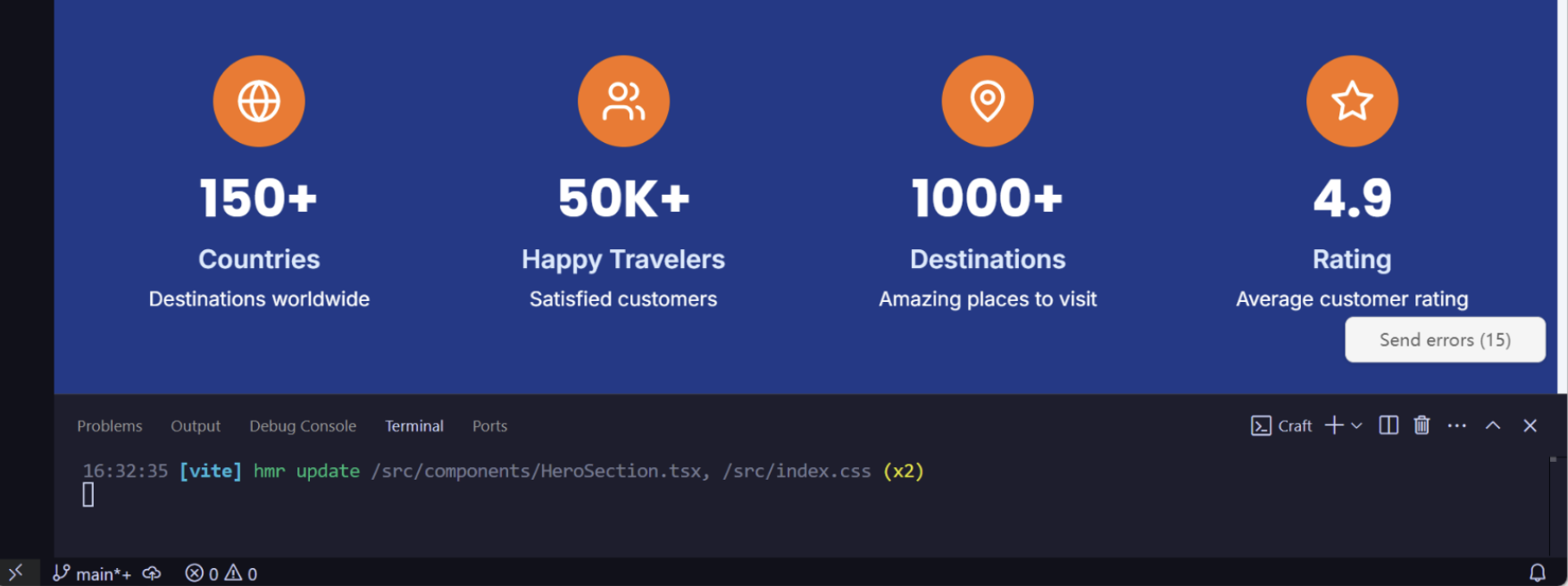

Click "send errors" to send errors to the conversation, and AI will automatically fix them.

FAQ ​

What if the preview page is blank? ​

When the preview page shows blank or fails to load normally, it may be caused by the following reasons:

  • Syntax errors in code: Check if there are error messages in the console.
  • Dependencies not correctly installed: Confirm node_modules is installed, try running npm install again.
  • Port occupied or service not started: Check if the development server is running normally.

Solution:

  1. Describe the problem phenomenon in the conversation, e.g., "Preview page is blank, please help me troubleshoot".
  2. If the preview window shows error messages, click Send Errors to send the error to AI for analysis.
  3. Try to manually re-trigger preview: Click the Preview button in the top right corner of the Chat panel, or input "Please reopen preview".
