WeChat Work AI Bot Integration Guide ​

Through the /remote-control command, you can quickly integrate CodeBuddy Code with WeChat Work AI Bot, enabling remote message-driven functionality. Using WebSocket long polling active connection mode, no public IP is required, making configuration the simplest option.

Prerequisites ​

  • Registered WeChat Work account
  • CodeBuddy Code installed: codebuddy --version
  • Completed login authentication: After running codebuddy, execute /login

1. Create a WeChat Work AI Bot ​

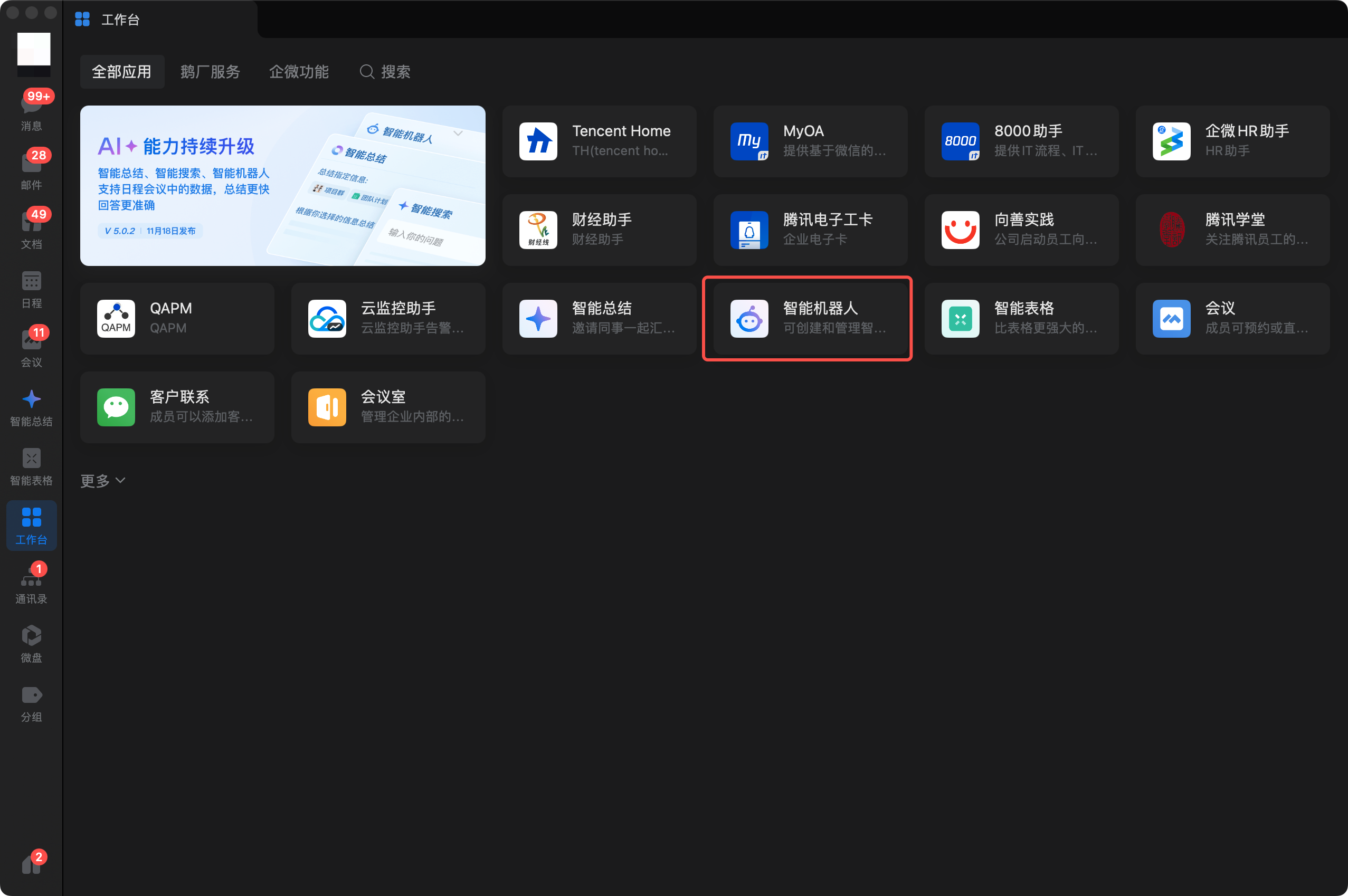

1.1 Open the Creation Page ​

  1. Open the WeChat Work client and go to "Workbench"
  2. Click "AI Bot" → Click "Create" → Select "Manual Creation"

If you cannot find the "AI Bot" entry in the Workbench, please update WeChat Work to the latest version.

1.2 Fill in Basic Information ​

Enter basic information such as the Bot name, avatar, and app description.

Fill in Basic Information

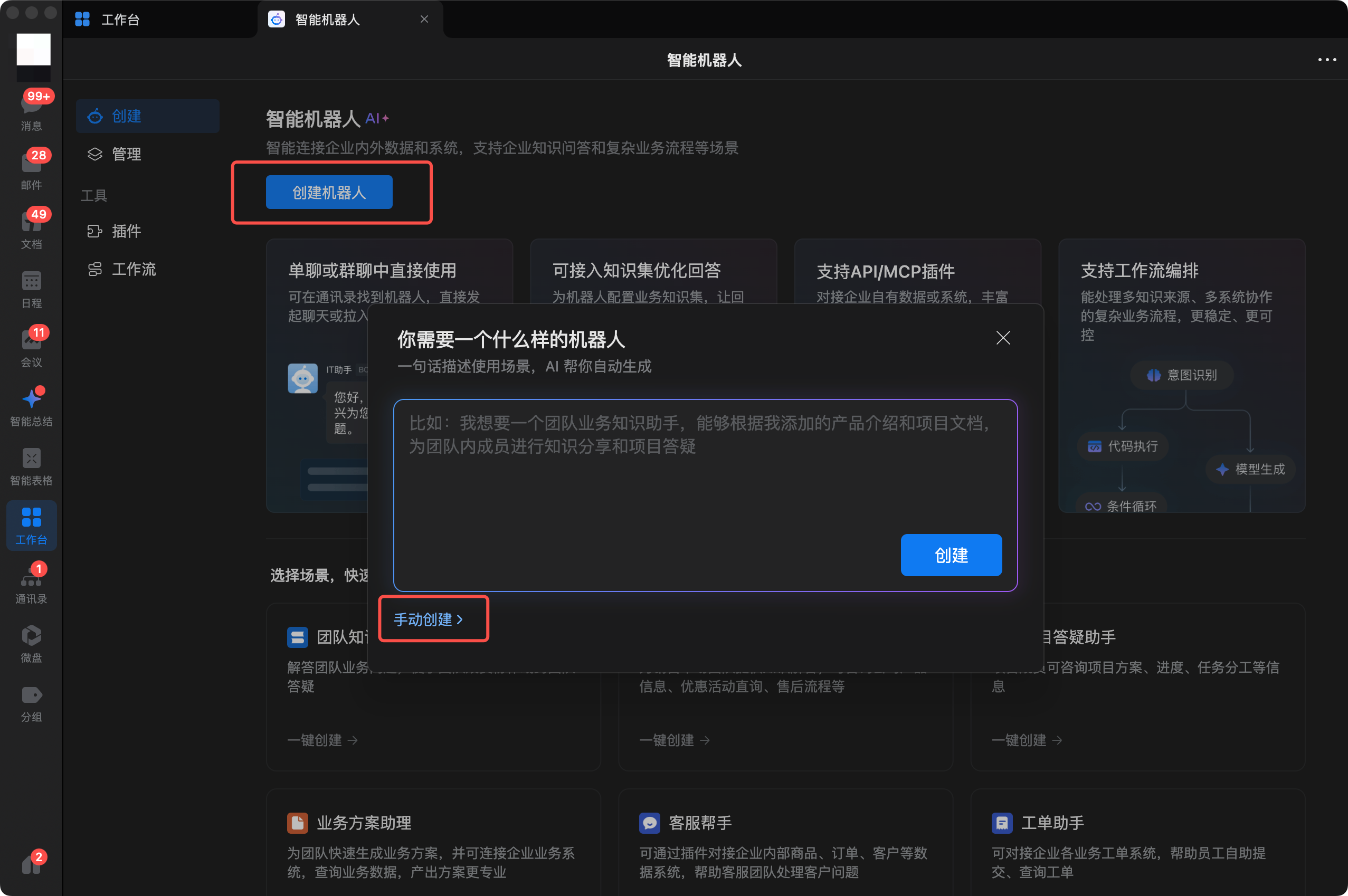

1.3 Switch to API Mode ​

Click "API Mode Creation" at the bottom of the page.

Switch to API Mode

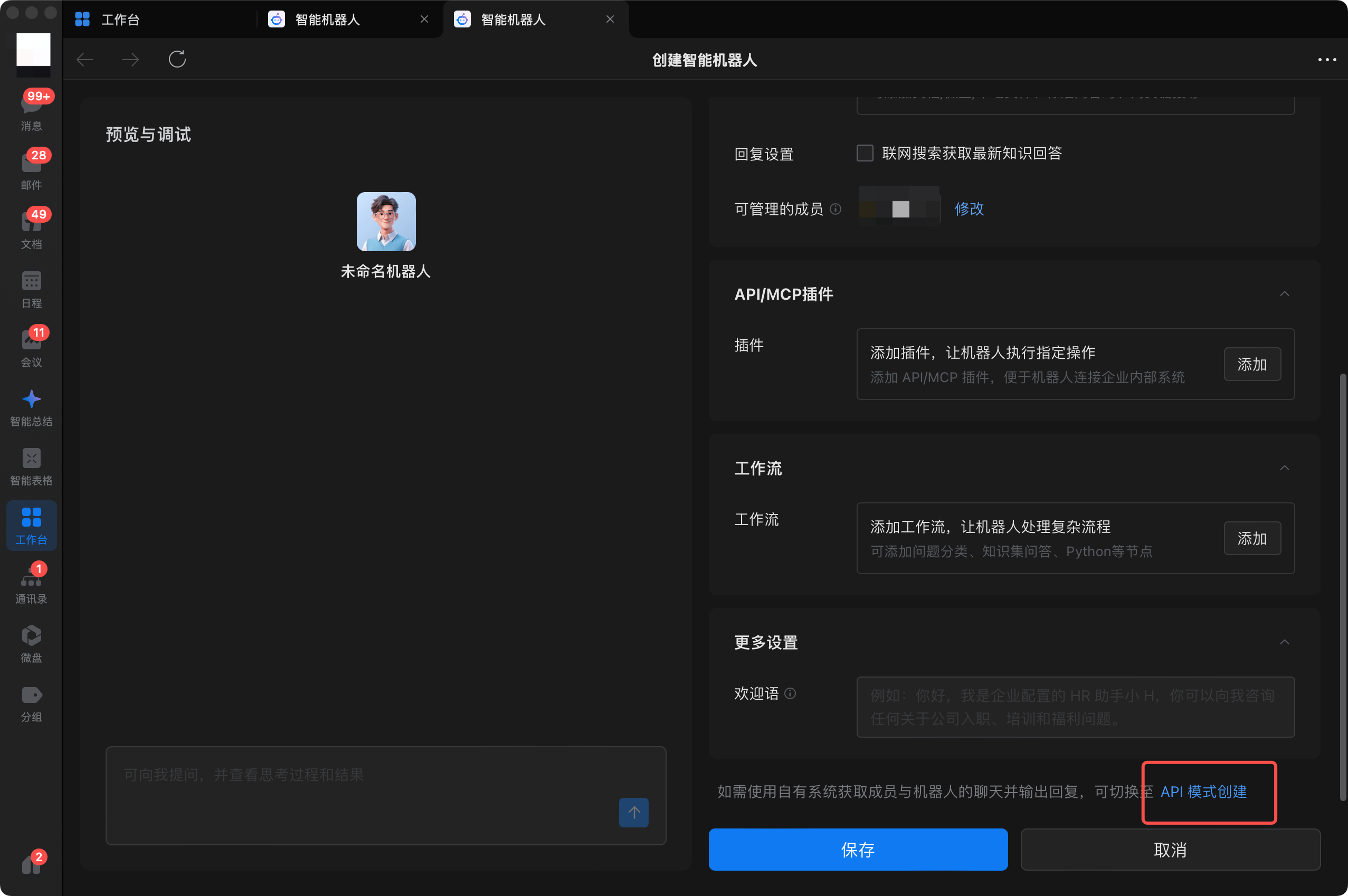

1.4 Select Long Polling Mode ​

On the API mode creation page, find the "API Configuration" area and select "Use Long Polling" for the connection mode.

API Mode Creation Page

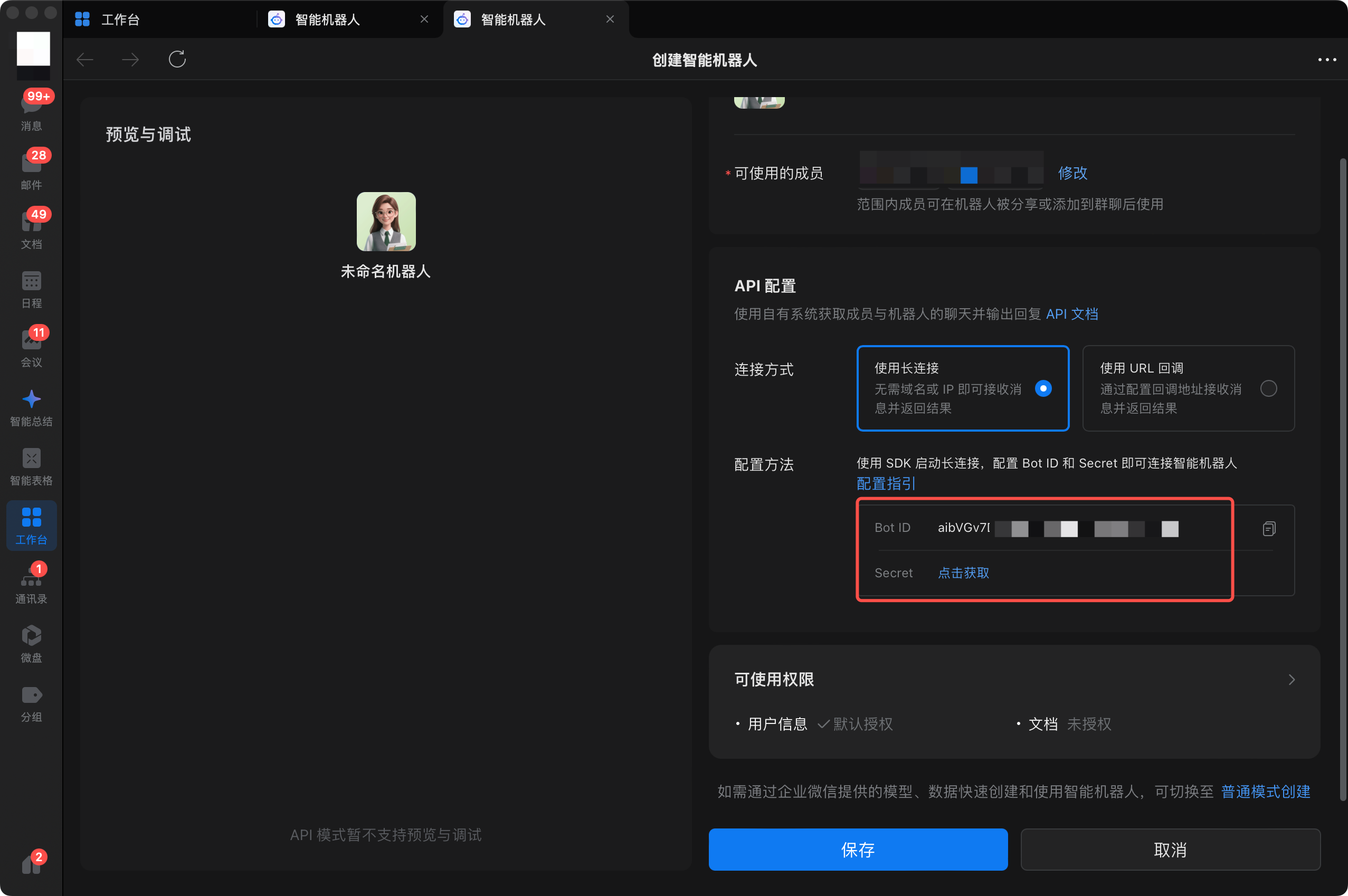

1.5 Get Bot ID and Secret ​

Find the following information in the "API Configuration" area and keep it safe:

  • Bot ID: The unique identifier for the Bot (example: aibVGv7I...)
  • Secret: Click "Get" or "Click to Get" to obtain the access key

API Configuration - Get Bot ID and Secret

⚠️ Important: The Secret is displayed only once. If lost, you can regenerate it on the Bot details page.

1.6 Save the Bot ​

After confirming that the Bot ID and Secret have been recorded, click "Save" to complete creation.

2. Configure Environment Variables ​

Before starting CodeBuddy CLI, set the following environment variables:

bash
export CODEBUDDY_WECOM_BOT_ID="<your Bot ID>"
export CODEBUDDY_WECOM_BOT_SECRET="<your Bot Secret>"

Optional Configuration ​

Environment VariableDescriptionDefault Value
CODEBUDDY_WECOM_BOT_IDAI Bot ID (required)—
CODEBUDDY_WECOM_BOT_SECRETAI Bot Secret (required)—
CODEBUDDY_WECOM_BOT_WS_URLWebSocket server address (used for private deployment)wss://openws.work.weixin.qq.com

Persistent Configuration (Optional) ​

Add environment variables to your shell startup file for automatic loading on each startup:

bash
# ~/.zshrc or ~/.bashrc
export CODEBUDDY_WECOM_BOT_ID="<your Bot ID>"
export CODEBUDDY_WECOM_BOT_SECRET="<your Bot Secret>"

3. Start CodeBuddy and Connect ​

3.1 Start Interactive Mode ​

bash
codebuddy

3.2 Open Remote Control Panel ​

/remote-control

This command opens an interactive panel listing all available connection clients.

3.3 Connect to wecom-bot ​

Use arrow keys to select the wecom-bot entry and press Enter to initiate connection:

Remote Control Clients

  1. • wecom-bot  [disconnected]  (Press Enter to connect)
  2. • centrifugo [disconnected]
  3. Cancel

The panel will automatically close after successful connection. If environment variables are not configured, the panel will stay and display error messages.

3.4 Check Connection Status ​

Run /remote-control again to check the connection status:

  1. • wecom-bot  [connected]  (Press Enter to disconnect)
  2. Cancel

Status descriptions:

  • disconnected — Not connected, can initiate connection
  • connecting — Connecting, please wait
  • connected — Connected, can disconnect

4. Panel Operation Instructions ​

OperationDescription
↑ / ↓Select client entry
j / kVim-style navigation (equivalent to up/down arrow keys)
EnterConnect (in disconnected state) or disconnect (in connected/connecting state)
EscExit panel (not responsive during operations in progress)

5. Verify Integration ​

After establishing the connection, you can verify that the Bot is working properly through the following methods.

Method 1: Direct Conversation ​

  1. Open the WeChat Work client (desktop or mobile)
  2. Find the Bot you created in the message list
  3. Send a test message (such as "Hello") and confirm the Bot replies

Method 2: Group Chat ​

  1. Add the Bot to a group chat
  2. Send a message via @Bot name in the group
  3. The Bot will respond to @mentioned messages

6. Message Processing Flow and Status Indicators ​

Complete Message Processing Flow ​

The processing flow after a user sends a message to the Bot:

User sends message on WeChat Work
        ↓ WebSocket long polling real-time message push
CodeBuddy CLI receives message
        ↓ Reply within 5 seconds (meets WeChat Work callback timeout requirement)
Send streaming message (stream finish=false): "Processing, please wait..."
        ↓ WeChat Work client displays streaming message
Agent processing... (processing time may be 1 second to 5+ minutes)
        ↓
Processing complete, send streaming message (stream finish=true): Final result
        ↓ WeChat Work client replaces "Processing..." with final result
WeChat Work user sees final reply (only the final result is kept in chat history)

Streaming Status Indicator Mechanism ​

Utilizing the full replacement feature of WeChat Work streaming messages (aibot_respond_msg stream type):

  1. Immediate Reply: After receiving a user message, immediately send a streaming message with finish=false, content: "Processing, please wait..."
  2. In-place Replacement: After the Agent finishes processing, send finish=true + final result using the same stream.id
  3. When the WeChat Work client receives finish=true, it replaces the previously displayed "Processing, please wait..." with the full content

Reference: AI Bot Long Polling Documentation —— stream.content is full content, each send replaces the previous display.

User Experience ​

StageChat Window DisplayDescription
After message sent"Processing, please wait..."Streaming message placeholder, indicating Bot is processing
After processing completeFinal reply content"Processing..." replaced in-place by final result

Difference from Previous Solution ​

AspectOld Solution (Text Message ack)New Solution (Streaming Message Replacement)
"Processing, please wait..."Permanently kept in chat historyReplaced in-place by final result
Chat History2 messages (ack + result)1 message (final result only)
Status IndicatorYesYes

Timeout Handling ​

  • Streaming Message Timeout: 6 minutes (timed from first stream send)
  • Safety Timeout: 5 minutes (1 minute buffer reserved)
  • Timeout Fallback: If Agent processing exceeds 5 minutes, automatically fallback to async push (aibot_send_msg, 24-hour validity)
  • Callback Timeout: Must send reply within 5 seconds after receiving message callback (streaming placeholder message meets this requirement)

7. How It Works ​

WeChat Work user sends message
        ↓
WeChat Work server (WebSocket connection pool)
        ↓ WebSocket long polling real-time push
CodeBuddy CLI (WecomBotClient)
        ↓
CodeBuddy Agent processes message, generates reply
        ↓
Reply message via the same WebSocket connection
        ↓
WeChat Work user receives Bot reply

Key Features ​

  • Connection Mode: WebSocket long polling (client actively connects, no public IP required)
  • Authentication Mechanism: Send aibot_subscribe frame on startup, carrying bot_id + secret for authentication
  • Message Reception: WeChat Work server pushes user messages in real-time via aibot_msg_callback frame
  • Message Reply: Return Agent replies in streaming mode via aibot_respond_msg frame
  • Heartbeat Keep-alive: Send ping frame every 30 seconds to keep connection alive
  • Auto Reconnect: Automatically reconnect after connection drop with exponential backoff strategy, maximum delay 60 seconds

8. FAQ ​

Environment Variables Not Configured ​

Symptom: Error displayed after selecting wecom-bot in /remote-control panel

Error: WeChat Work AI Bot is not configured.
Missing environment variables: CODEBUDDY_WECOM_BOT_ID, CODEBUDDY_WECOM_BOT_SECRET

Solution:

  1. Confirm that CODEBUDDY_WECOM_BOT_ID and CODEBUDDY_WECOM_BOT_SECRET are set
  2. Execute echo $CODEBUDDY_WECOM_BOT_ID to verify environment variables are active
  3. Restart CodeBuddy CLI
  4. Execute /remote-control again to try connecting

Connection Failed ​

Possible Causes and Troubleshooting:

  1. Incorrect Bot ID or Secret

    • Confirm the values copied from WeChat Work admin console are exactly the same (note if there are trailing spaces)
    • Confirm the AI Bot application status is normal and not disabled

  2. Network Connection Issues

    • Check if you can access wss://openws.work.weixin.qq.com
    • For private deployment, confirm CODEBUDDY_WECOM_BOT_WS_URL is set correctly
    • Test network connection in browser: curl -v wss://openws.work.weixin.qq.com

  3. CLI Log Viewing

    • Check error logs in terminal output
    • After executing codebuddy, stay in the main interface and observe output during connection process

No Response After Connection ​

Troubleshooting Steps:

  1. Execute /remote-control to confirm wecom-bot status is connected
  2. If status is disconnected, reconnect
  3. Check CLI terminal logs for error messages
  4. Confirm CodeBuddy CLI process is still running (not interrupted or exited)

CLI Restart Requires Reconnection ​

The /remote-control connection status is temporary and not persisted. After each CodeBuddy CLI restart, you need to execute /remote-control again and select wecom-bot to establish connection.

Auto-Connect Solution (if you need auto-connect on each startup):

Add the following to your startup script or shell configuration file:

bash
# ~/.zshrc or ~/.bashrc
export CODEBUDDY_WECOM_BOT_ID="<your Bot ID>"
export CODEBUDDY_WECOM_BOT_SECRET="<your Bot Secret>"

# Optional: Create alias for quick startup with auto-connect
alias cbc-wecom='codebuddy -c "/remote-control"'

The -c parameter indicates automatically executing the specified command on startup.

App Shows "Token Expired" or "Invalid Secret" ​

This usually means the Bot's Secret has expired or been regenerated. Solution:

  1. Log into WeChat Work admin console and go to Bot details page
  2. Regenerate Secret in the "API Configuration" area
  3. Update the environment variable CODEBUDDY_WECOM_BOT_SECRET
  4. Restart CodeBuddy CLI and reconnect
